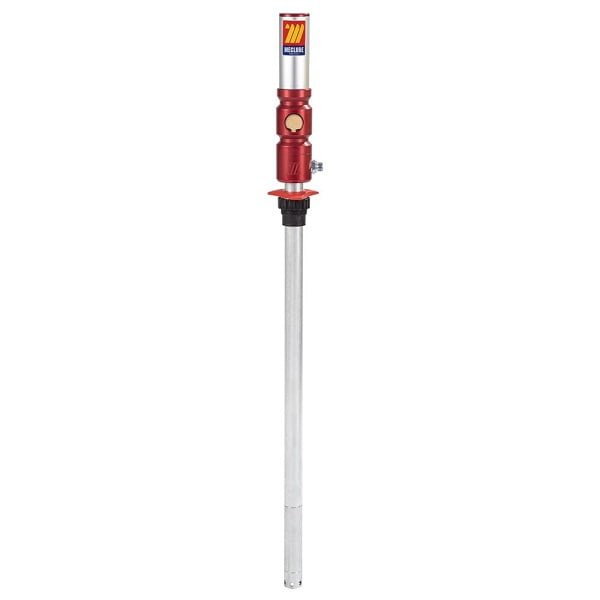

Oil Pump – Drum Mounted (3:1, 30lt/min, Air Operated)

  • Gross weight 7.2 kg
  • Net weight 6.5 kg
  • Compression ratio 3:1
  • Air consumption 220 l/min
  • Noise level 80 dB
  • Shank diameter 42 mm
  • Shank length 940 mm
  • Working pressure 6-8 bar
  • Air Inlet connection F 1/4” G
  • Oil outlet connection M 1/2” G
  • Oil delivery capacity 8 bar 30 l/min
  • For drums with capacity of 180-220 l
Add to wishlist 1Add to compare
SKU: 0201195000 Categories: ,


These pumps are advised for the transfer of low – medium viscosity oil (SAE 15/130), and anti-freeze, for shortmedium distances (40 – 50 m). The delivery capacity of a pump varies according to particular applications and combinations: the pressure of air supplied; viscosity and temperature of the fluid; dimensions of delivery hose; dimensions of connections and type of gun which is used. The operating pressure may vary between a minimum of 3 bar and a maximum of 8 bar. The double-acting guarantees the delivery of a continuous and constant flow, suitable for installations on distribution facilities. To optimize the performance and the time-life of the air-operated pumps we advise to use filtered and lubricated air.


Additional information




ART: 020-1195-000


1 Year
