Description

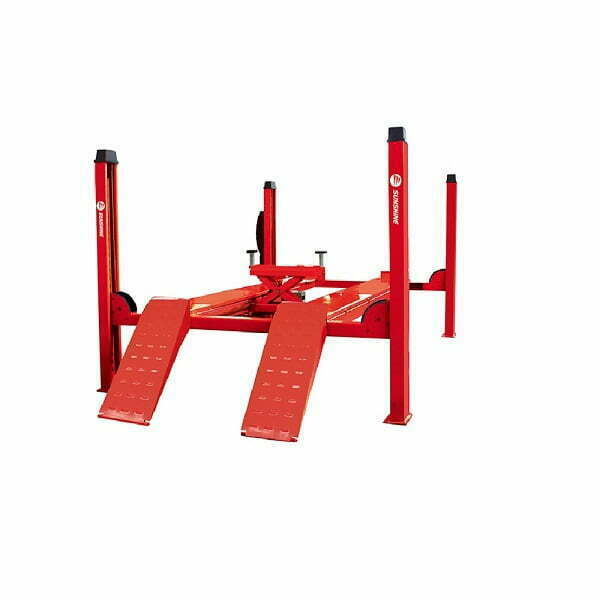

Model: SXJS4523 scissor alignment lift 4.5tons
Double-Deck Lift (For Wheel Aligner)
With automatically Pneumatic lock
With rubber pads for protection
Position for rolling angle plate for alignment
MIn lifting hight:290mm
Specifications:
Lifting Capacity: 4500Kg (9900lbs)
Max lifting height (main platform with sub-platform): 2300mm
Main platform lifting height (sub-.platform): 1900mm(400mm)
Clearance between platform: 900mm
Total width: 2160mm
Single platform total width: 600mm
Total length: 4800mm
Lifting Time: 40s
Lowering Time: 18s-40s
Power Supply Voltage: 220V/380V, 1ph/3ph
Motor power: 3Kw
Net Weight: 2400Kg
Gross Weight: 2450Kg
Packing Dimension: 4630*645*460mm (2pcs) 470*340*1030mm (1pc)
Cubic Meter: 3.0cbm
Additional information
Brand | Sunshine |
---|---|
Model | SXJS4019A |
Warranty | 1.5 Year |
